Vertical large-capacity shaking incubator ( Touched screen )

2022-04-23 19:11:28
Vertical large-capacity shaking incubator ( Touched screen )

Product Features



1.The vertical body with 2 movable racks saves space, while the double-door design provides flexibility

2.The frame is made of excellent coated steel, bright stainless steel chamber with round corners is easy to clean and anti-corrosion

3.Adopts whole LED touching screen, setting data and measured data observe intuitively.

It records and stores data to avoid loss caused by power failure.

It supports 5 program modes with 150 programming segments,USB interface, printer, scheduled power-on and optional 485 interface.

4.Insulated tempering glass observation window provides good view of whole objects without opening door.

  The running will stop when the door open, it's more safe and convenience for operation.

5.With UV sterilization.

6. Using the efficient fluorine-free compressor and servo motor to guarantee stable and precise operation.

7.silence fan and forced convection offer constant temperature excellently

8.Equipped with over temperature alarm, fail power under abnormal conditions  automatically

 Overcurrent protection keep motor operating safely, and  extend the service life.

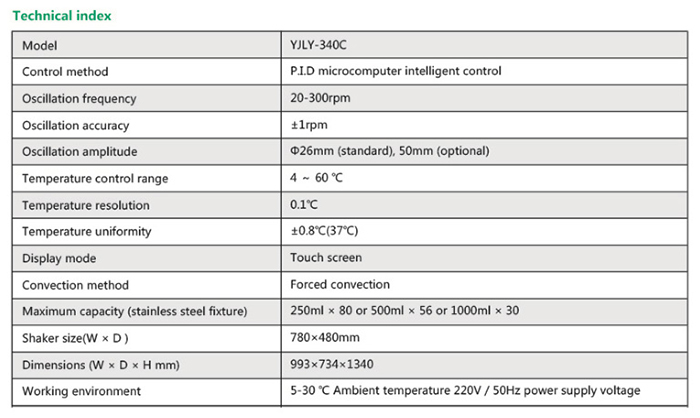

Technical data

Model

YJLY-340C

YJLY-340

display

PID touched screen

PID LCD screen

shaking speed

1-300rpm

20-300rpm

shaking accuracy

±1rpm

shaking range

Æ26m(standard) Æ50mm(option),26mm reciprocation (option)

temp.range

4-60

temp.accuracy

0.1

temp.uniformity

±0.8(37)

air circulation

forced convection

door type

2-leaf door

2-leaf door

stainless clamp

250mlx40pcs or
500mlx28pcs or
1000mlx15pcs

250mlx40pcs or
500mlx28pcs or
1000mlx15pcs

shaking shelf(mm)

780x480

780x480

inner chamber(mm)

880x560x634

880x560x634

exterior size(mm)

993x734x1340

993x734x1340

work condition

5~30,220V/50Hz
