Product Features
1.The vertical body with 2 movable racks saves space, while the double-door design provides flexibility.
2.The frame is made of excellent coated steel, bright stainless steel chamber with round corners is easy to clean and anti-corrosion.
3.Adopts whole LCD screen, setting data and measured data observe intuitively.
It records and stores data to avoid loss caused by power failure.
It supports 30 programming segments 99 cycles, USB interface, printer, scheduled power-on and optional 485 interface.
4.Insulated tempering glass observation window provides good view of whole objects without opening door.
The running will stop when the door open, it's more safe and convenience for operation.
5.With UV sterilization.
6. Using the efficient fluorine-free compressor and servo motor to guarantee stable and precise operation.
7.silence fan and forced convection offer constant temperature excellently.
8.Equipped with over temperature alarm, fail power under abnormal conditions automatically.
Overcurrent protection keep motor operating safely, and extend the service life.

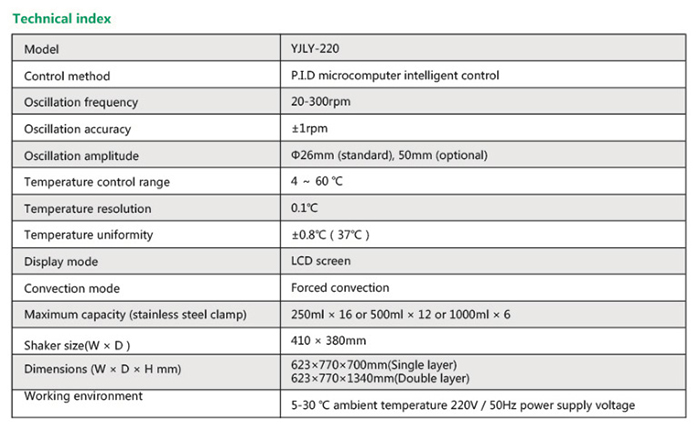

Technical data
Model | YJLY-220C | YJLY-220 |
display | PID touched screen | PID LCD screen |
shaking speed | 1-300rpm | |
shaking accuracy | ±1rpm | |
shaking range | ф26m(standard),фÆ50 | |
temp.range | 4℃-60℃ | |
temp.accuracy | 0.1℃ | |
temp.uniformity | ±0.8℃(37℃) | |
air circulation | forced convection | |
door type | 1-leaf door | 1-leaf door |
stainless clamp | 250mlx25pcs or | 250mlx25pcs or |
shaking shelf(mm) | 488x484 | 488x484 |
inner chamber(mm) | 570x560x634 | 570x560x634 |
exterior size(mm) | 623x770x1340 | 623x770x1340 |
work condition | 5~30℃,220V/50Hz |
